Water Filter Installation | Step-by-Step Guide for Every Filter Type

 Fridge filter installation takes 2-3 minutes with no tools. Pitcher filters take 1 minute. Faucet mounts take 5-10 minutes with a wrench. Under sink filters take 30-60 minutes and need basic plumbing skills. Whole house systems need 2-4 hours, most homeowners hire a plumber.

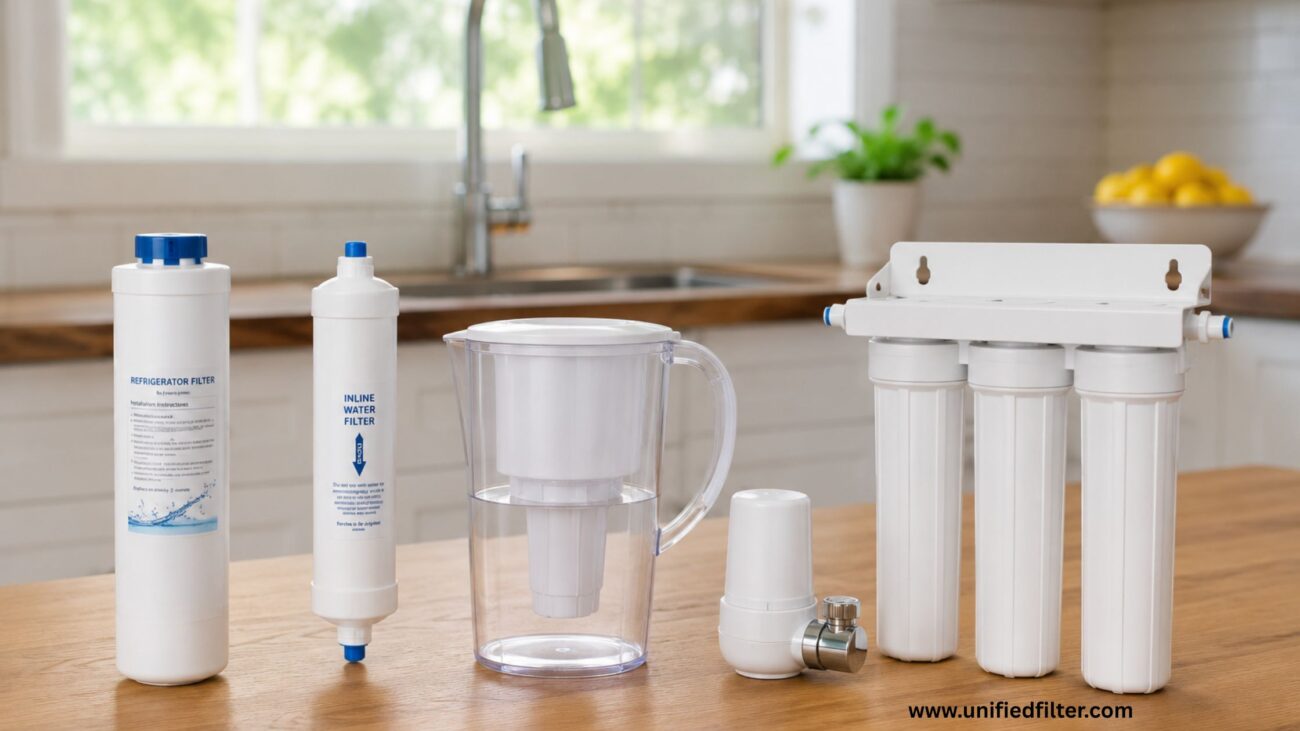

Water Filter Installation Time and Difficulty

Before getting into the specific steps, here is what each type of water filter installation actually involves. Pick your filter type and skip to that section.

How to Install a Refrigerator Water Filter | Internal Housing

This is the easiest water filter installation you will ever do. No tools. No water shutoff. Just pull, push, click, flush.

• 1. Find your filter: It is either in the upper interior of the fridge (push-button or twist housing) or in the base grille at the bottom front.
• 2. Release the old filter: Press the eject button or twist counterclockwise about a quarter turn.The filter will release, pull it straight out.
• 3. Prepare the new filter: Remove the protective cap. Do not touch the O-rings, they create the watertight seal.
• 4. Insert the new filter: Push straight in and twist clockwise (or just push, depending on your model) until you feel and hear it click.
• 5. Reset the indicator: Hold the reset button or button combination for 3 seconds until the light changes color.
• 6. Flush the system: Run 2-3 gallons through the dispenser and discard. This removes air and loose carbon from the new cartridge.

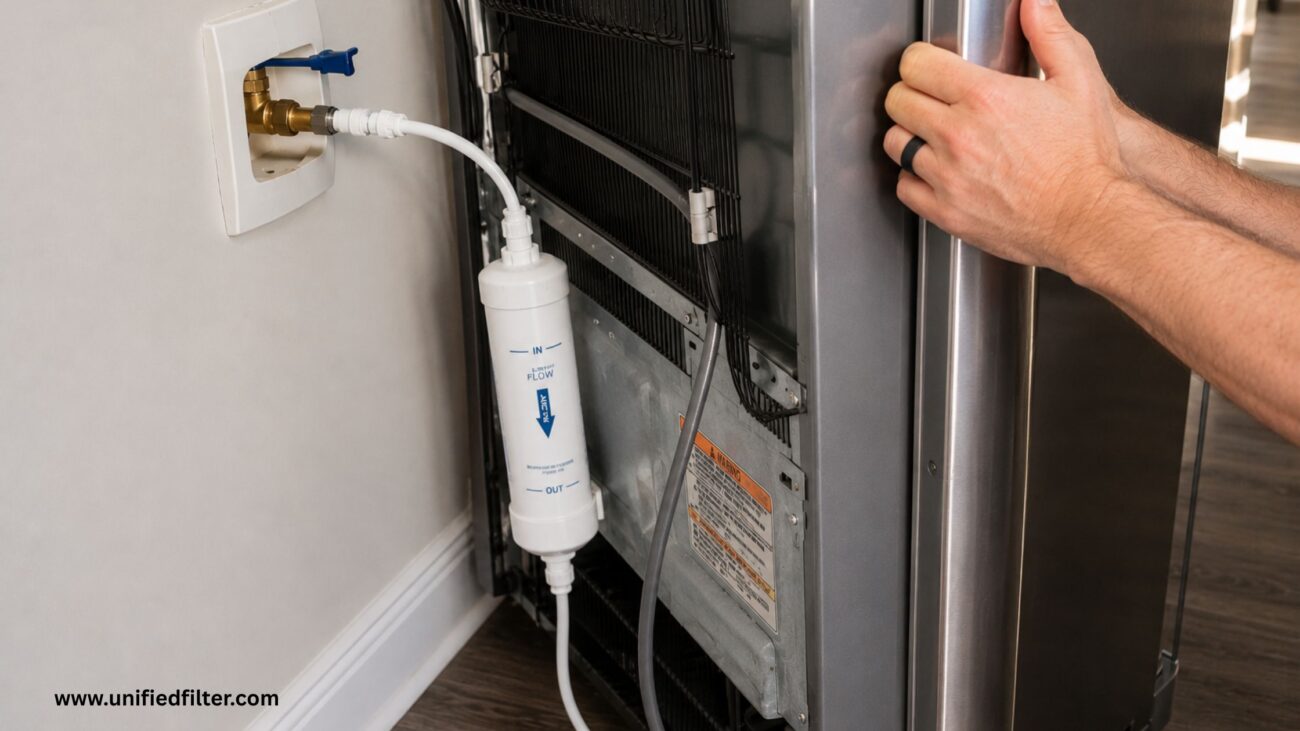

How to Install an Inline Refrigerator Water Filter

Inline filters install on the water supply line behind or under the fridge, used when the fridge has no internal filter slot. The process is simple but does require pulling the fridge out and turning off the water supply.

1. 1. Pull the fridge away from the wall: Give yourself enough room to access the water line connection at the back, typically 2-3 feet of clearance.
2. 2. Turn off the water supply valve: The valve is usually on the wall behind the fridge or under the sink. Turn it clockwise until it stops.
3. 3. Disconnect the old inline filter: The filter connects between the supply line and the fridge’s water inlet. Push-fit connectors release by pushing the collar toward the filter while pulling the tube. Have a cloth and small bucket ready, residual water will drip.
4. 4. Connect the new filter:  Match the arrow on the filter body to the direction of water flow. Push the supply line into the inlet side and the fridge line into the outlet side, push until you feel them seat firmly.
5. 5. Turn the water back on: Open the supply valve slowly. Watch the new filter connections for 2-3 minutes before pushing the fridge back.
6. 6. Flush and check:  Run 2-3 gallons through the fridge dispenser. Check for drips at both connections one more time before calling it done.

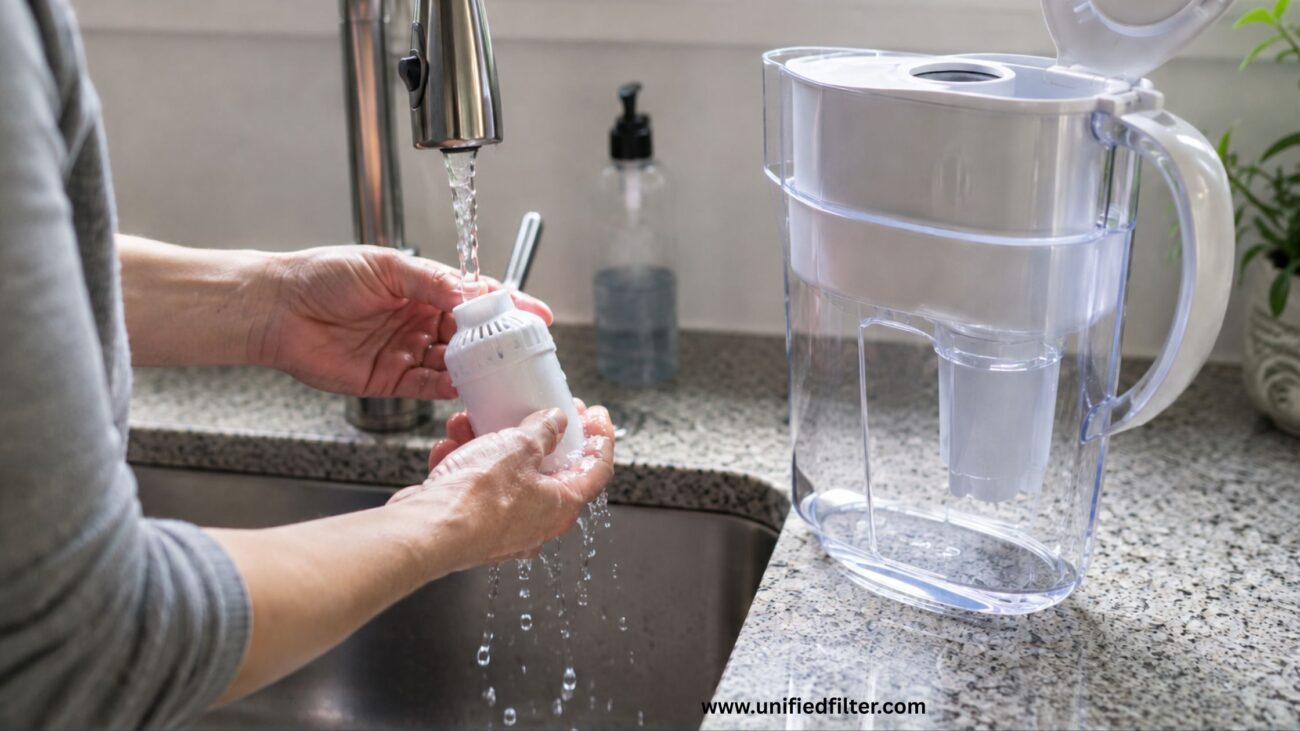

How to Install a Pitcher Water Filter

Pitcher filter installation is the simplest of all, though Brita’s instructions manage to make it sound complicated. Here is the actual process:

• 1. Rinse the new filter:  Hold it under cold running water for 15 seconds. This pre-wets the carbon and reduces the amount of loose carbon in the first few pitchers.
• 2. Press it into the reservoir:  Push it firmly into the filter slot at the bottom of the reservoir. It seats with a simple press, no twisting.
• 3. Discard the first two pitchers: Fill the pitcher and pour it out, do not drink it. Do this twice. The first two pitchers contain loose carbon particles that taste unpleasant but are harmless.
• 4. Reset the indicator: If your pitcher has a filter indicator, hold the reset button for 3-5 seconds.

How to Install an Under Sink Water Filter System

Under sink water filter installation is a genuine DIY project, not complicated, but it requires shutting off water, making plumbing connections, and drilling a hole for a dedicated faucet. Budget 30-60 minutes if you are doing it for the first time.

Tools you will need

• Adjustable wrench or channel-lock pliers
• Drill with hole saw bit (for faucet hole, usually 1-3/8 inch)
• Plumber’s tape (PTFE tape)
• Bucket and towels
• Pencil for marking

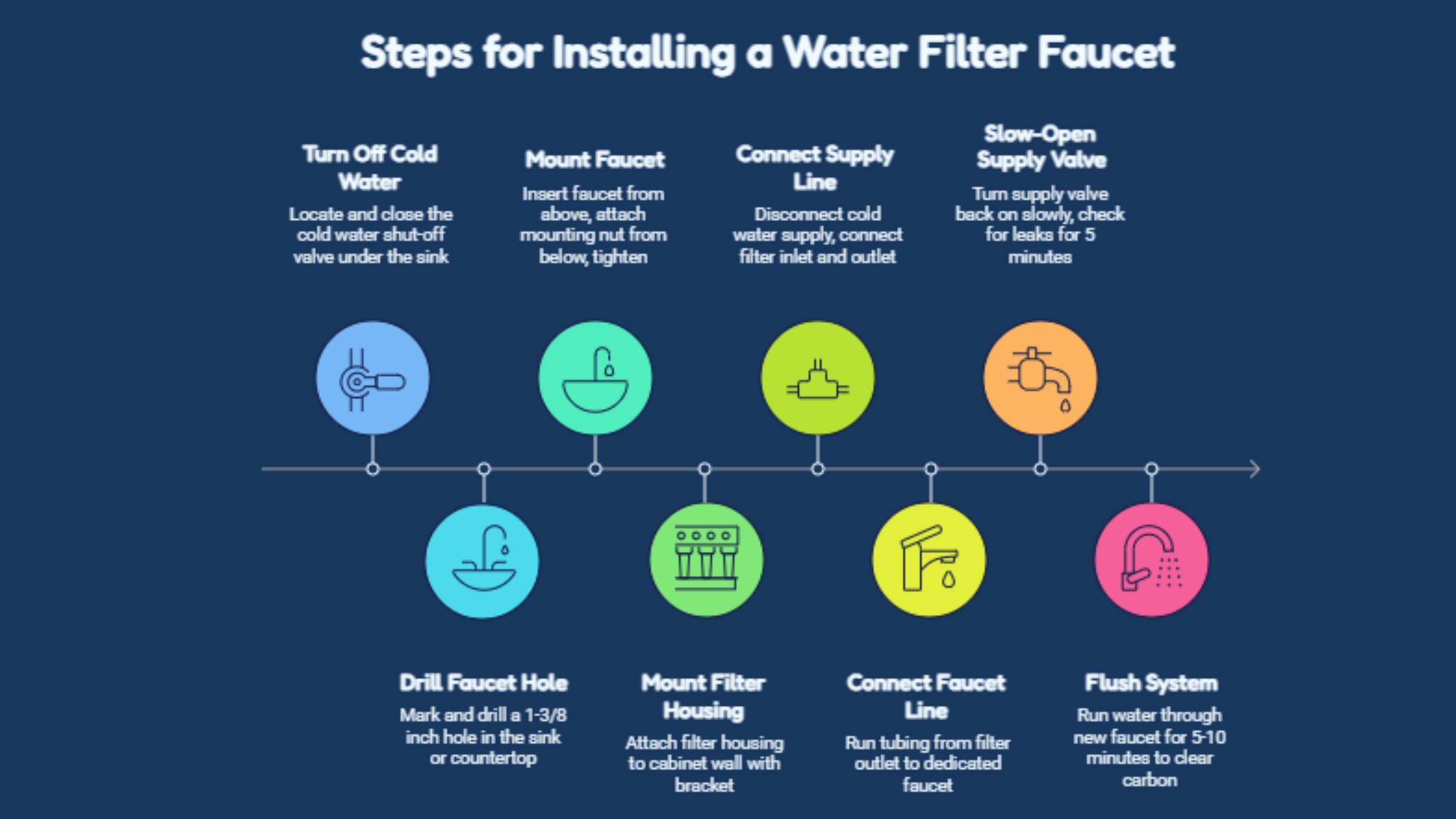

Installation steps

1. Turn off the cold water supply:  Locate the cold water shut-off valve under the sink, turn it clockwise until fully closed.

2. Drill the faucet hole:  Mark the position on the sink or countertop. Most systems use a 1-3/8 inch hole. Drill slowly, tape the drill bit to prevent chipping on ceramic sinks.

3. Mount the faucet: Insert the faucet through the hole from above. Attach the mounting nut from below and tighten. Do not overtighten, hand tight plus a quarter turn is enough.

4. Mount the filter housing:  Attach the filter housing to the cabinet wall using the provided bracket. Position it within reach for future filter changes.

5. Connect the supply line:  Disconnect the cold water supply line from the faucet. Connect the filter inlet to the cold water supply using the provided T-fitting or direct connection. Connect the filter outlet to the cold water supply line.

6. Connect the faucet line:  Run the tubing from the filter outlet to the dedicated faucet. Use push-fit or compression fittings as provided by the system.

7. Slow-open the supply valve: Turn the supply valve back on slowly. Watch every connection for 5 minutes before leaving it unattended.

8. Flush the system:  Run water through the new faucet for 5-10 minutes. The first water will be slightly discolored from the carbon, this is normal and clears quickly.

If you are not confident with plumbing,  hire a plumber for under sink installation. A slow leak inside a cabinet can cause significant water damage before it is noticed. The 30-minute install cost is far cheaper than a water-damaged cabinet.

Water Filter Installation Mistakes That Are Easy to Avoid

Most installation problems come from a handful of predictable mistakes. Here is what to watch for:

The most common mistake across all filter types, not flushing after installation. Every new filter, fridge, pitcher, under sink, needs water run through it before drinking. This is not optional.

How long does water filter installation take?

Fridge filters take 2-3 minutes. Pitcher filters take 1 minute. Faucet mounts take 5-10 minutes. Under sink systems take 30-60 minutes. Whole house systems take 2-4 hours.

Do I need a plumber to install a water filter?

Fridge, pitcher, and faucet mount filters need no plumber. Under sink filters are DIY-friendly with basic plumbing skills. Whole house systems are best done by a licensed plumber.

Why does my water taste bad after installing a new filter?

You need to flush 2-3 gallons through the filter and discard, loose carbon from new filters causes the taste and clears after flushing.

How do I know if my water filter is installed correctly?

No leaks at any connection, filter seated firmly with a click, water flows at normal pressure, and water tastes clean after flushing.

How often should I replace my water filter after installation?

Fridge filters every 6 months or 200-300 gallons. Pitcher filters every 2 months. Under sink filters every 6-12 months depending on the system.
