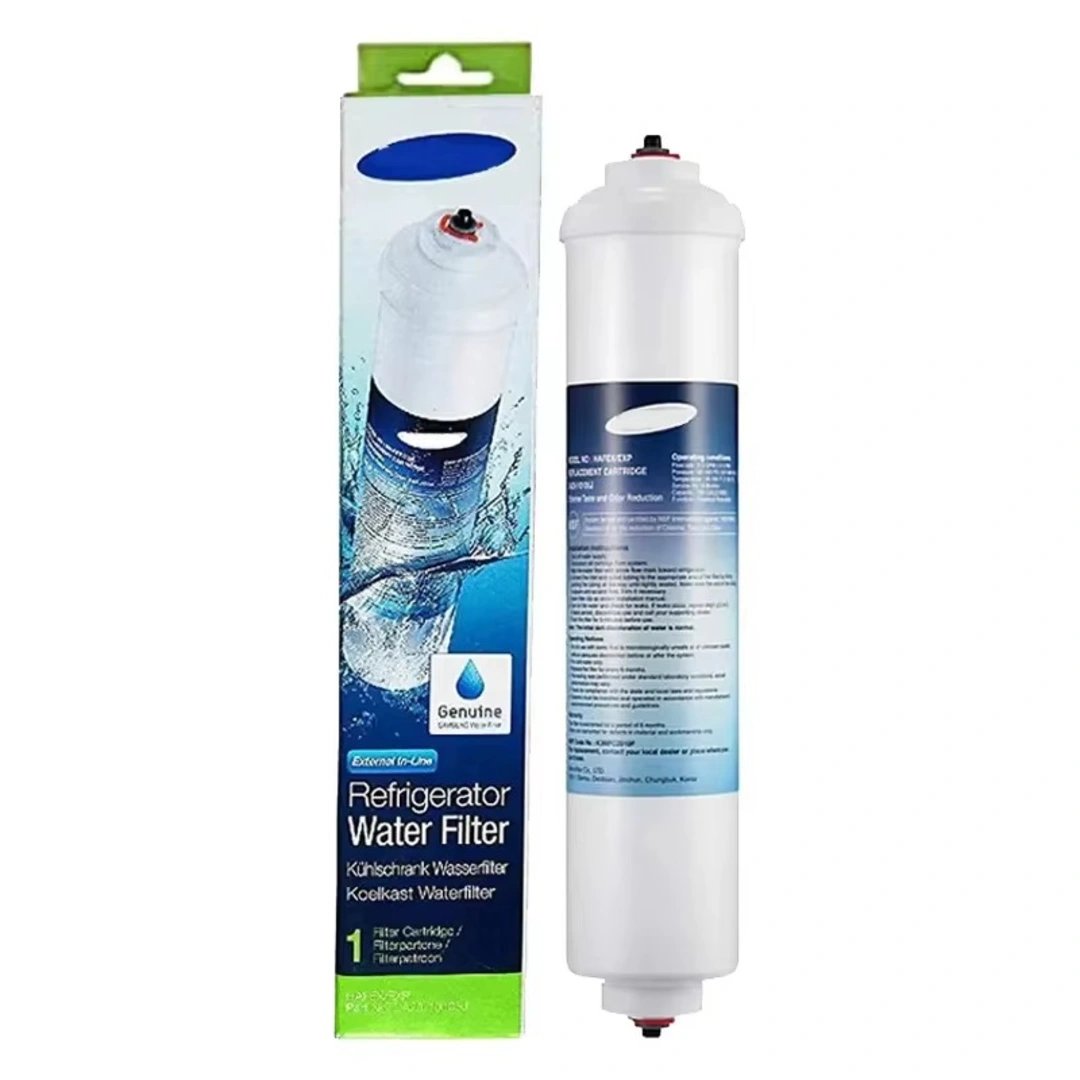

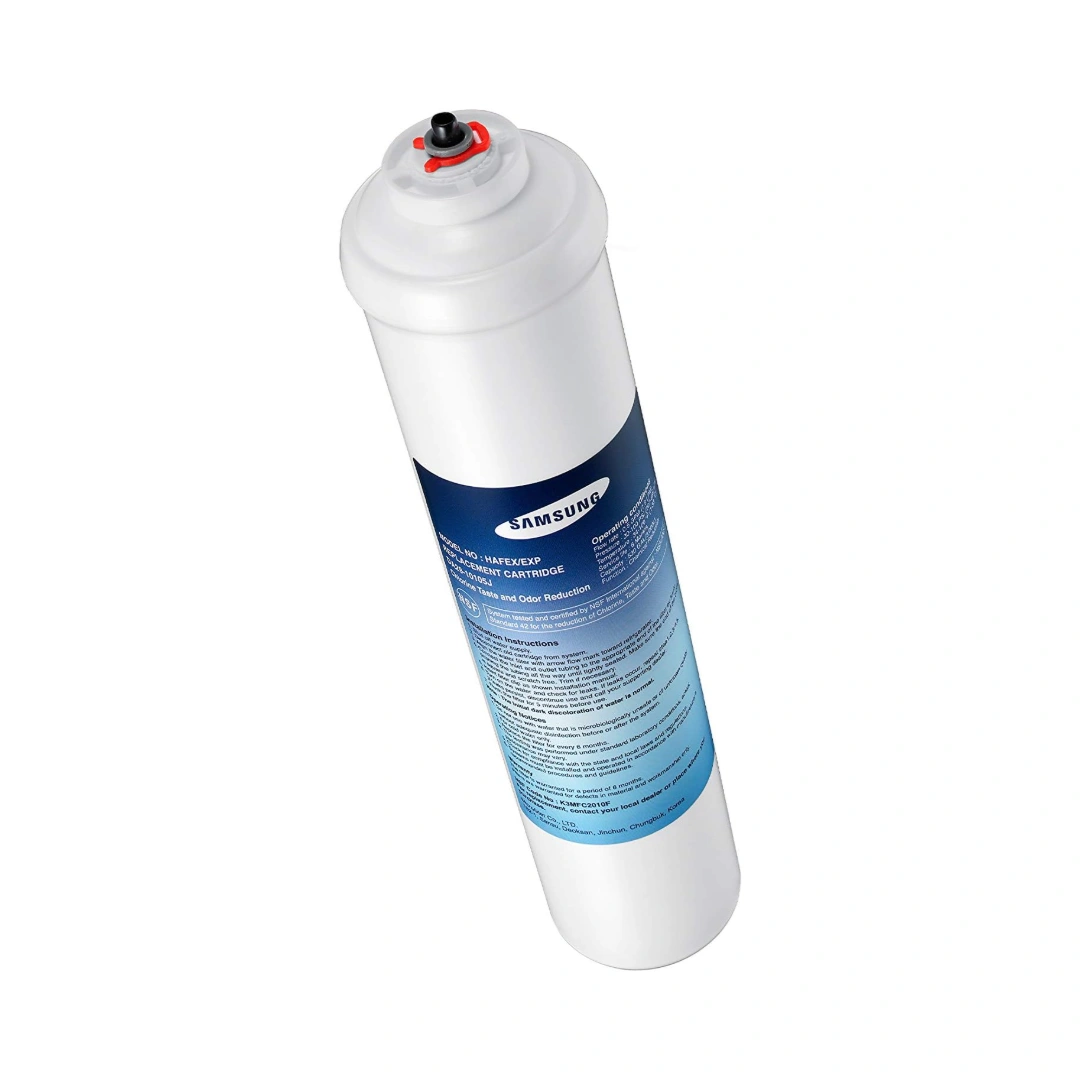

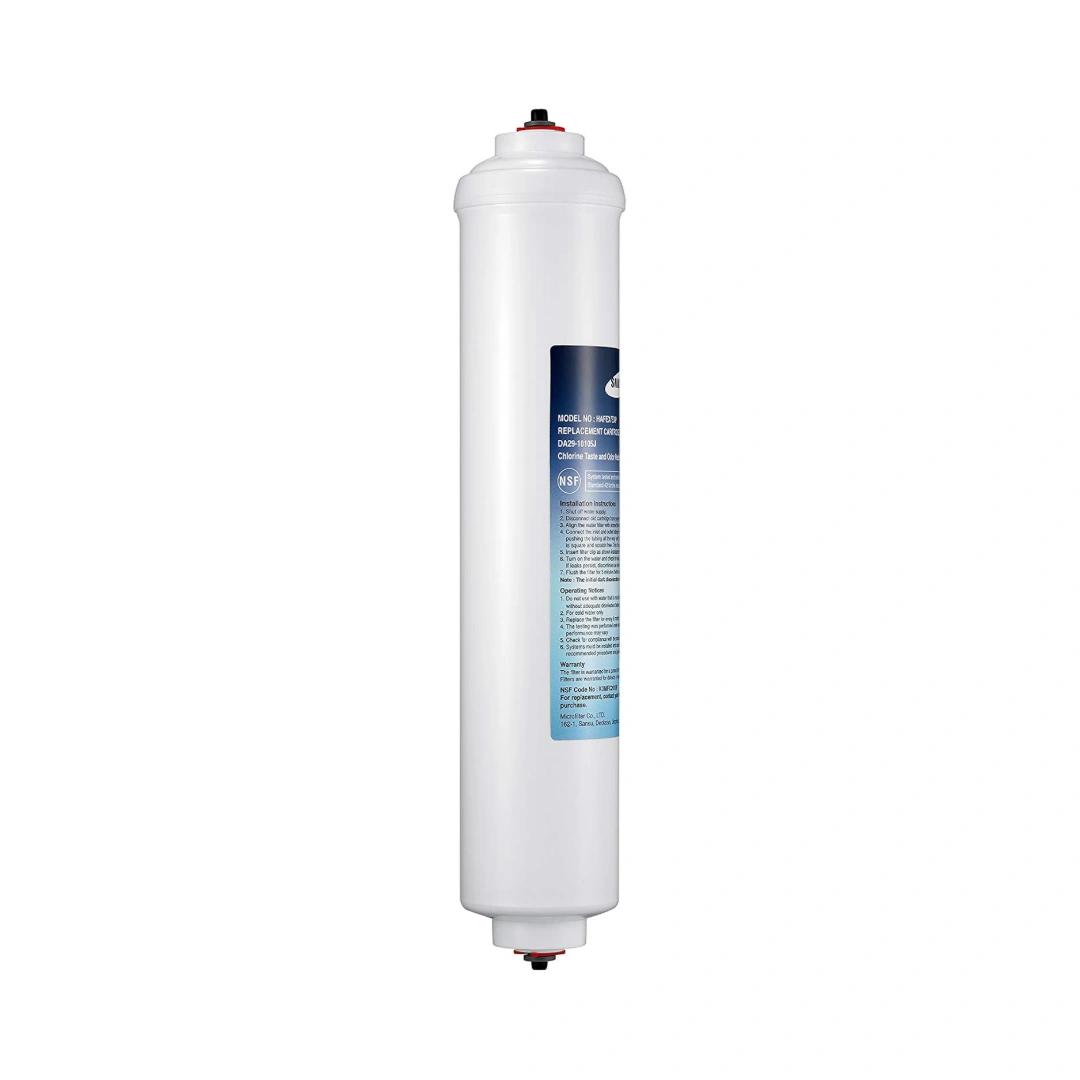

Samsung DA29-10105J HAFEX/EXP Inline Refrigerator Water Filter

Samsung DA29-10105J HAFEX/EXP External Inline Refrigerator Water Filter | Genuine OEM

If your dispenser water or ice cubes have started to notice a strange smell, stale taste, or a sudden drop in pressure, it is time for a filter upgrade. The Samsung DA29-10105J external inline water filter provides clean, crisp, and high-quality drinking water by removing stubborn contaminants right from the external source line before it ever enters your appliance.

Why Choose the Original Samsung DA29-10105J Filter?

Generic, low-quality aftermarket filters can lead to sudden water pressure drops or dangerous line leaks behind your appliance that cause structural kitchen damage. This genuine Samsung HAFEX/EXP cartridge is built using thick, food-grade plastic housing and certified premium coconut-shell activated carbon media to maintain steady, high-flow distribution.

Key Features & Performance Benefits

• Certified Quality Standards: Tested and certified under NSF/ANSI Standard 42 to targets chlorine taste, odor, rust, and particulate matter.

• External Inline Fitment: Mounts easily directly onto the raw copper or plastic water supply line behind your refrigerator.

• No Special Tools Needed: Built-in premium $1/4\text{-inch}$ quick-connect push fittings allow you to plug the tubing right in without messing with complex tools.

• Steady Dispensing: Delivers a smooth flow rate of 0.5 gallons per minute (gpm) without stalling your ice maker.

Technical Specifications

• Brand: Samsung Genuine OEM

• Model Code: DA29-10105J / HAFEX/EXP

• Filter Type: External Inline Cylindrical Cartridge

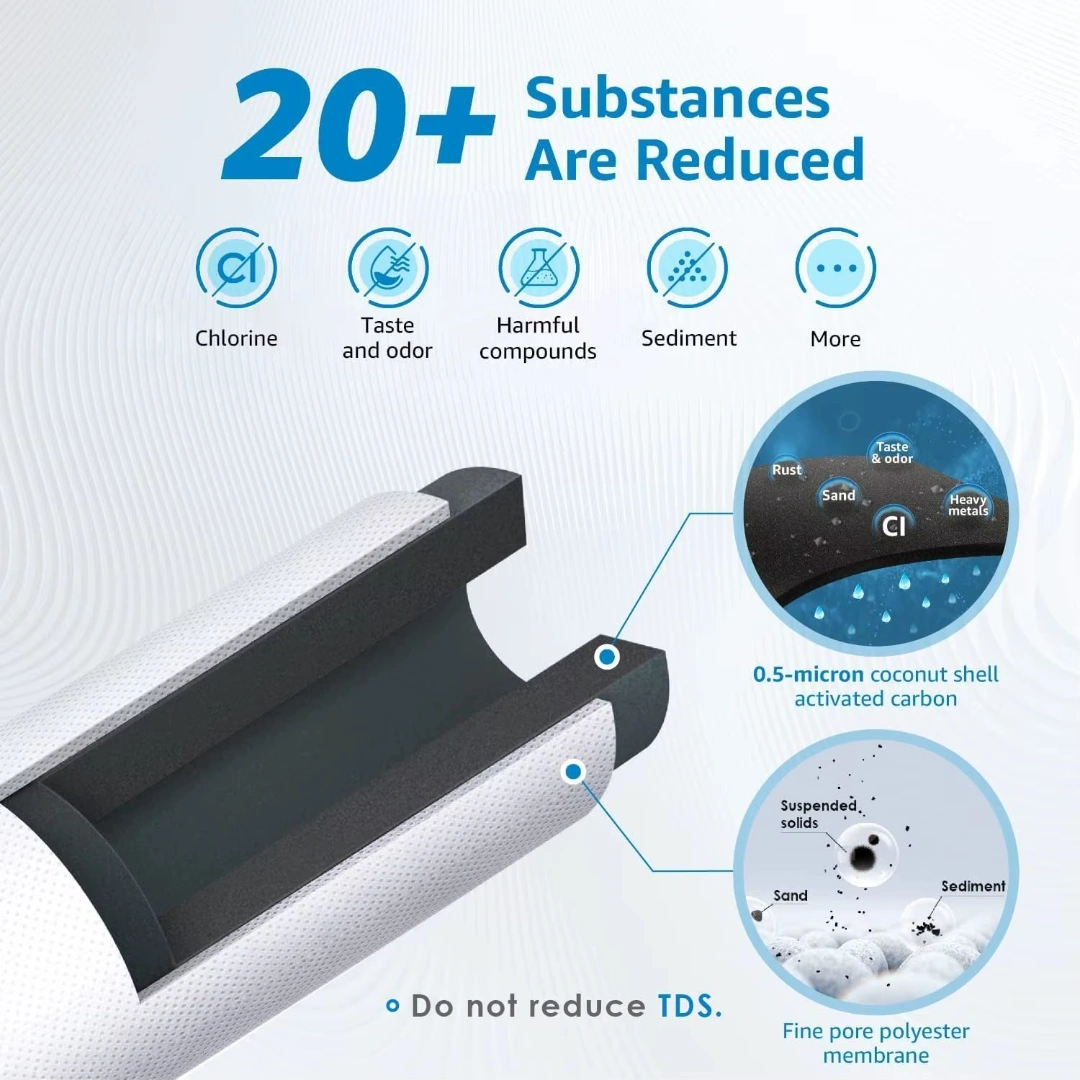

• Media Material: Premium Coconut Shell Activated Carbon Block

• Fitting Size: Built-in $1/4\text{-inch}$ Quick Connect / Push-In Connections

• Dimensions: 7.87″ Length x 1.57″ Outside Diameter

• Filter Capacity: 300 to 530 Gallons (Depending on raw water conditions)

• Lifespan: 6 Months (Recommended replacement window)

• Flow Rate: 0.5 gpm (1.89 Liters per minute)

• Operating Pressure Range: 30 – 100 psi

• Operating Temperature Limits: 34 – 100 °F (1.1 – 37.8 °C)

• Included Components: 1 Filter Cartridge, 2 Secure Wall-Mounting Clips

Step-by-Step Installation Instructions

Replacing your inline filter takes less than 15 minutes by following these simple installation steps:

1. Turn off the main cold water shut-off valve located behind the refrigerator or under the sink.

2. Dispense water for a few seconds to relieve any residual internal line pressure.

3. Disconnect your older filter by pulling out the small locking clips, pressing down on the outer collar ring of the fitting, and sliding the plastic tubing straight out.

4. Take your new DA29-10105J filter and look closely at the flow arrow indicator mark printed on the cartridge label. Make sure the arrow points directly toward the refrigerator.

5. Firmly push your clean, square-cut $1/4\text{-inch}$ water line into the inlet end of the filter until it stops and sits tightly seated. Push the remaining fridge tube line into the outlet end.

6. Insert the secure plastic retention locking clips around the collars.

7. Mount the new filter cartridge into the two provided wall-mounting clips.

8. Turn the main water supply valve back on carefully and inspect both connection ends for tiny leaks.

9. Flush the Cartridge: Flush water through your front dispenser continuously for 5 minutes before regular drinking use. (Note: Initial dark carbon discoloration during the first few seconds is completely normal).
